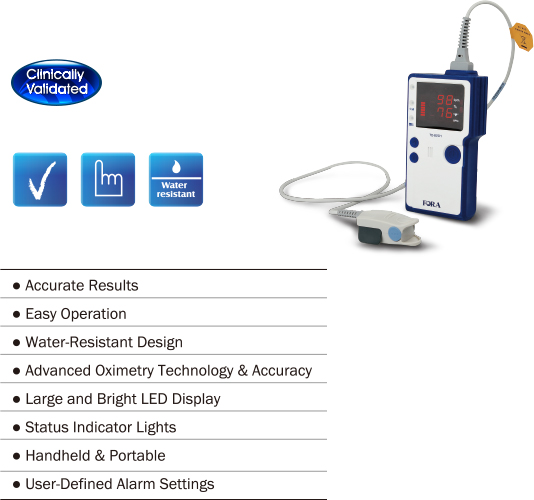

Pulse Oximeter
PO100 Series

Measurement Range 0 – 100%
Resolution 1%
Accuracy 70% to 100% ±2 digits; 60% to 70% ±3% digits; below 60% unspecified
Method Dual wavelength
Neonate Mode Available
Heart (Pulse) Range 30 to 240bpm
Resolution 1bpm
Accuracy ±3bpm or ±3%, whichever is greater
Display Type Segment LED Display
Display Parameters SpO2, pulse rate, pulse bar
Display Status Indication Battery status indication, Memory full indication
Display Date and Time Yes
Urgent Alarm SpO2 value is higher/lower than predefined setting, sensor fall off, or pulse too high/low
Reminding Alarm Low battery
Type of Sensors Neonatal probe, Ear sensor, Forehead sensor, Reusable sensor, and Disposable sensor
Operation Condition 32°F to 113°F (0°C to 45°C); between 15% to 90% relative humidity, non-condensing
Storage Condition -4°F to 122°F (-20°C to 50°C); between 0% to 95% relative humidity, non-condensing
Water-Resistance Against water splash
Impact-Resistance Against repeat impact from 1 meter height
Power Source 4 x AA
Battery Life More than 100 hours
Dimension (inch) 5.51” x 2.76” x 1.26”
Weight (lb) – Batteries Excluded 0.53
